Trek Fuel EXe 5 2024

Trek Fuel EXe 5 2024

$6,499.99 AUD
$8,999.99 AUD $6,499.99 AUD
Sale Sold out
Size
Color

Shipping Info

Bikes will be available instore, or shipped and assembled to your local distributer.

All other items will be shipped by Australia Post Standard Shipping.

Or, feel free to pick up your order instore!

If you have any troubles, give us a call on 0480 349 805 to discuss the Trek Fuel EXe 5 2024

Servicing

Uncover the Perfect Service Level for your Bike, from Every 3 to 6 Months, to Every 12 Months.

Click here to Learn More!

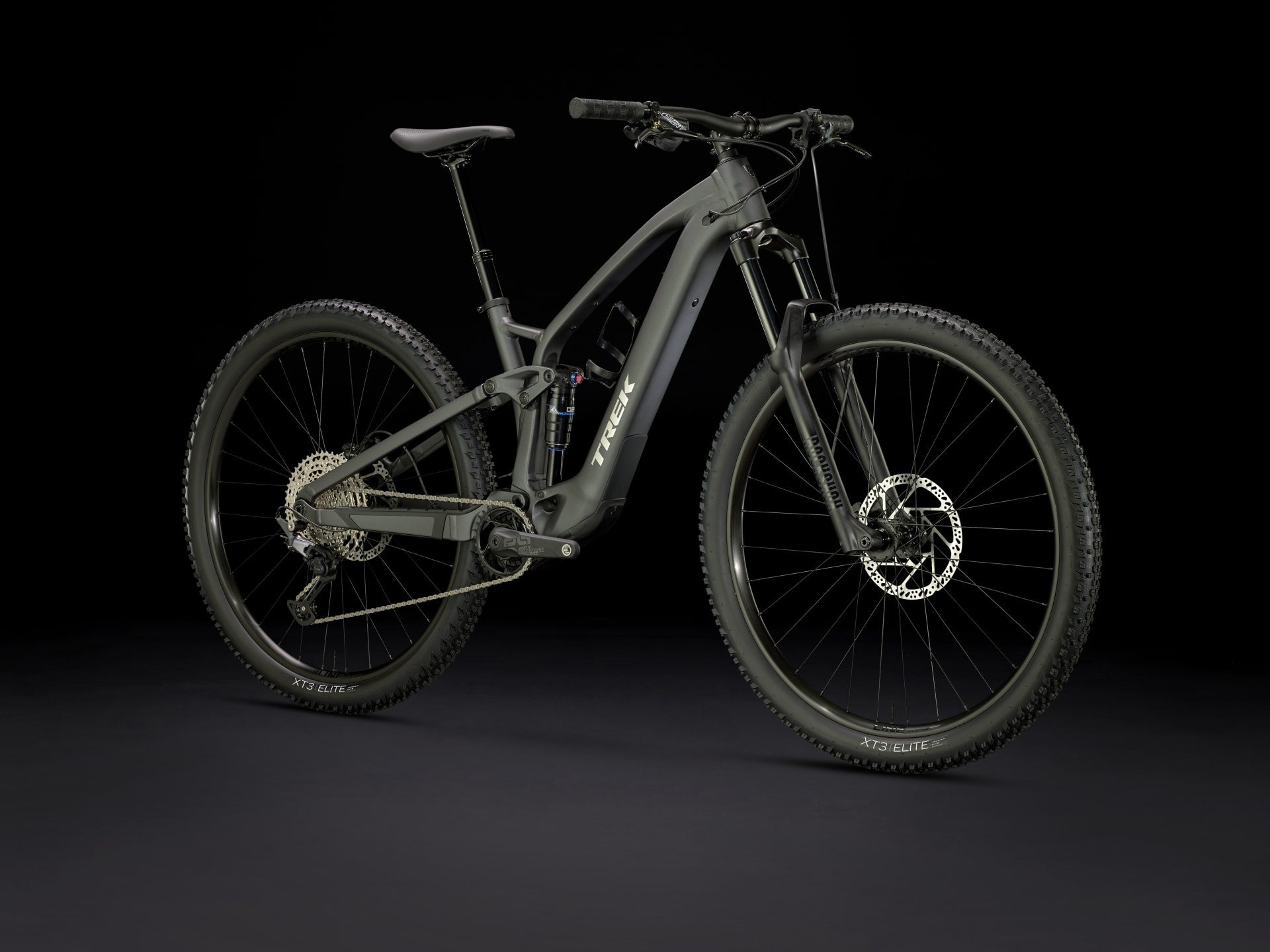

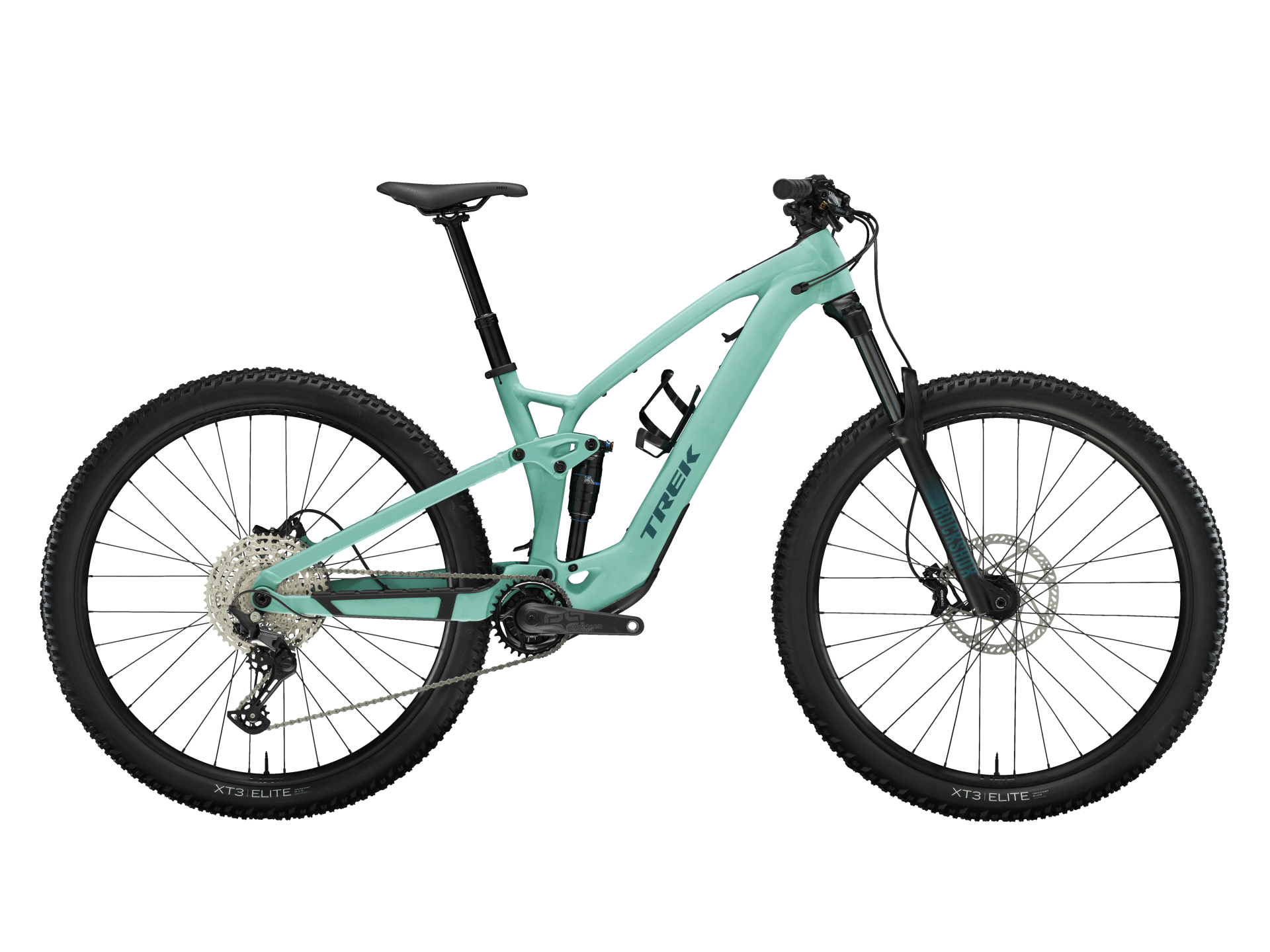

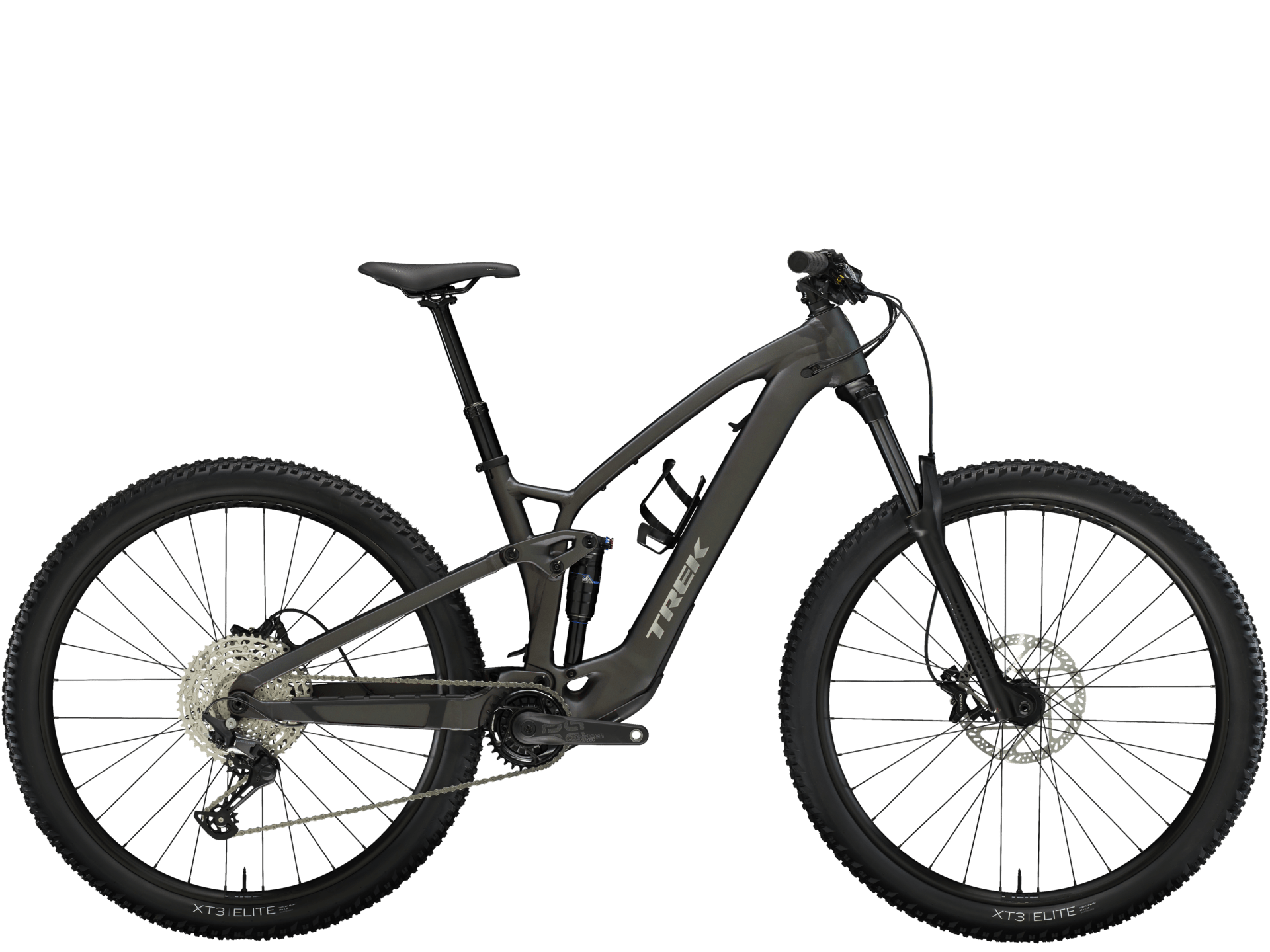

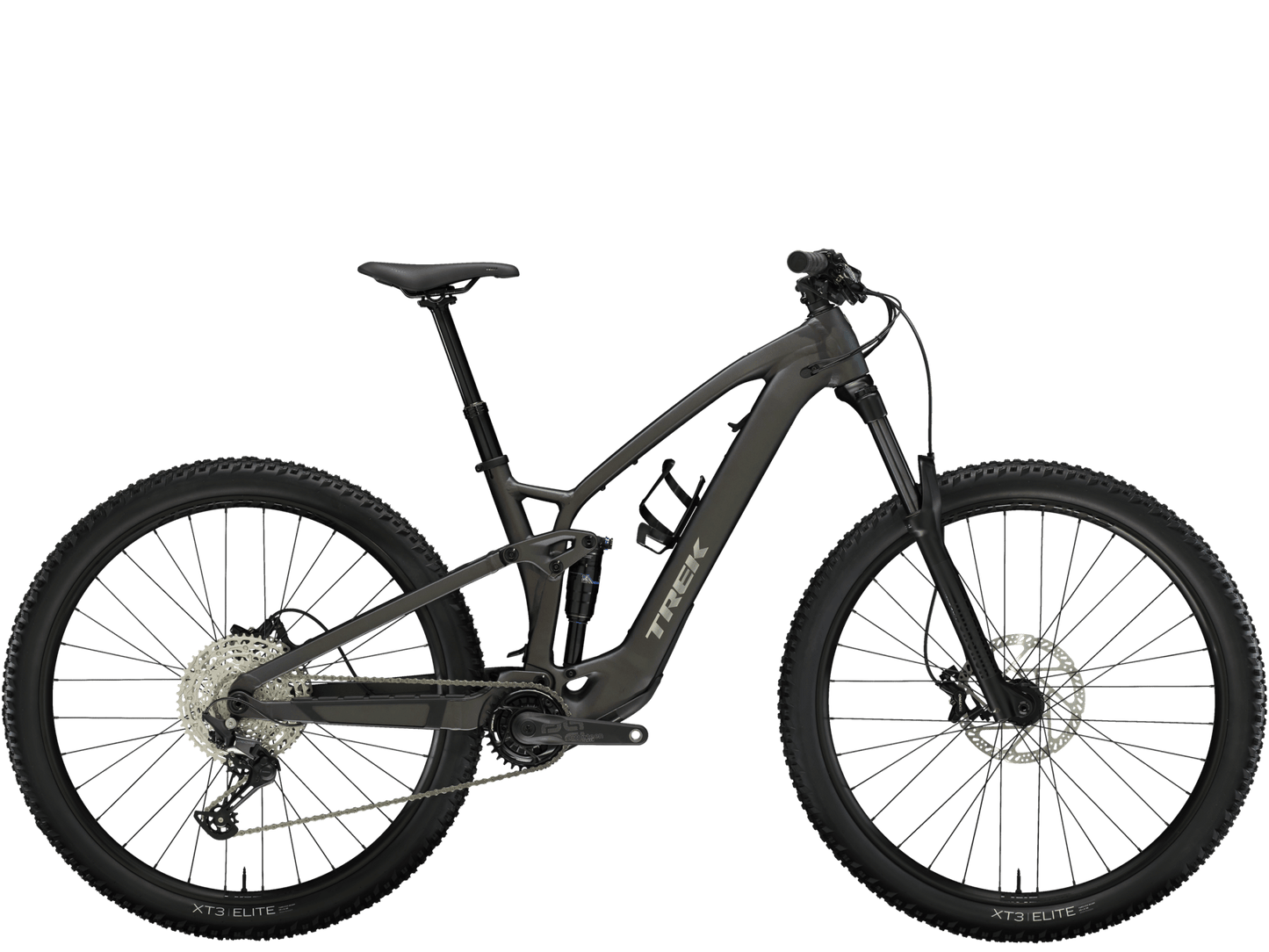

The Fuel EXe 5 is an aluminium electric mountain bike that brings all the tech of its carbon counterpart into a pocket-friendly package. It boasts the same tiny-but-mighty drive system that quietly disappears under you, plus a sleek display and remote. But what really makes this bike excel is its true trail bike feel that handles just like a traditional mountain bike, just with a little extra power.

Specifications

Frame
Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel

Fork
RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 150 mm travel

Shock
X-Fusion Pro 2, 2-position damper, 205 mm x 60 mm
Max compatible fork travel 160mm (575mm axle-to-crown)

Wheels
Hub front
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle

Hub rear
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle

Skewer rear
Bontrager Switch thru-axle, removable lever

Rim
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve

Tyre
Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40"

Tyre part
Bontrager TLR sealant, 180 ml/6 oz

Rim strip Bontrager TLR

Max tyre size Frame: 29x2.50", Fork: See manufacturer

E-system
Battery TQ 360Wh

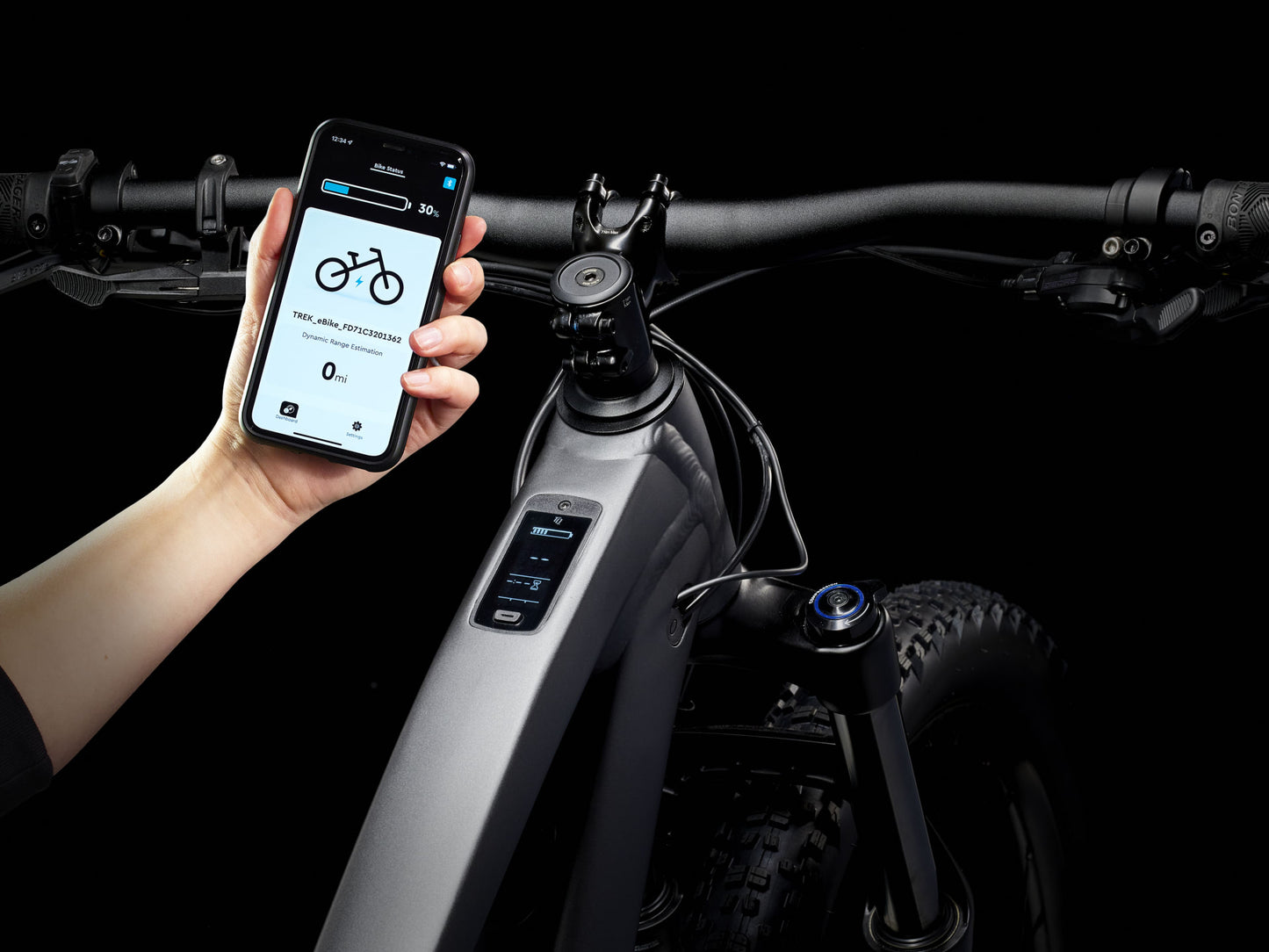

Computer TQ LED display with Bluetooth & ANT+ connectivity

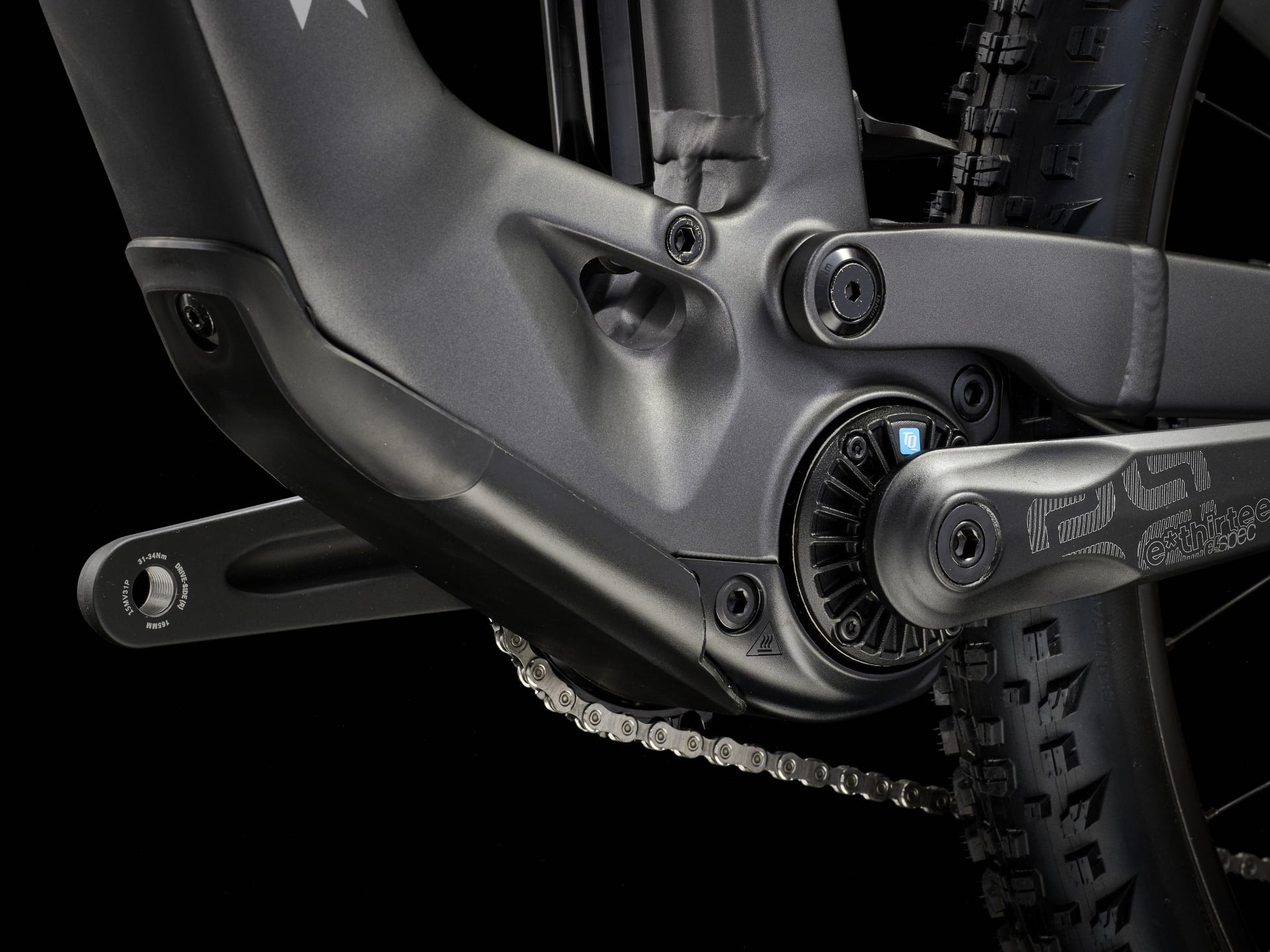

Motor TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

Drivetrain
Shifter
Shimano Deore M6100, 12-speed
Rear derailleur Shimano Deore M6100, long cage

Crank
E*thirteen E*spec Plus, 165 mm length
Chainring
E*thirteen E*spec, 32T alloy ring, 55 mm chainline
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100, 12-speed
Max. chainring size 1x: 34T, min 30T

Components
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size: S
TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length

Size: M
TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length

Size: L, XL
TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length

Handlebar
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width

Grips
Bontrager XR Trail Comp, nylon lock-on

Stem
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length

Head set Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible

Brake
Tektro HD-M745 hydraulic disc

Brake rotor Tektro, 6-bolt, 203 mm

Rotor size Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Accessories
Electronics TQ 4A charger

Weight
Weight
M - 20.80 kg / 45.86 lbs (with TLR sealant, no tubes)

Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Please contact us for any further product specific specifications for this Trek Fuel EXe 5 2024.
