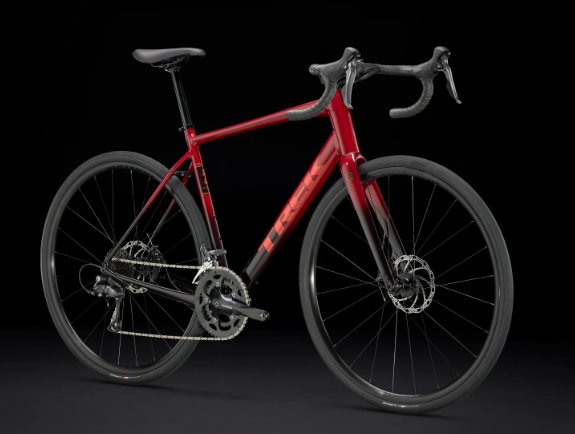

Domane AL 2 Gen 4 2024

Bikes will be available instore, or shipped and assembled to your local distributer.

All other items will be shipped by Australia Post Standard Shipping.

Or, feel free to pick up your order instore!

If you have any troubles, give us a call on 0480 349 805 to discuss the Domane AL 2 Gen 4 2024

Uncover the Perfect Service Level for your Bike, from Every 3 to 6 Months, to Every 12 Months.

Click here to Learn More!

Frame
100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle

Fork
Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Weight
Weight: 56 - 10.55 kg / 23.26 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Drivetrain
Shifter Size: 44, 49, 52, 54, 56, 58, 61
Shimano Claris ST-R2000-R, 8 speed, right
Size: 44, 49, 52, 54, 56, 58, 61
Shimano Claris ST-R2000-L, 8 speed, left
Front derailleur Shimano Claris R2000, 31.8 mm clamp
Rear derailleur Shimano Claris R2000, medium cage, 34T max cog
*Crank Size: 44
Shimano RS200, 50/34 (compact), 165 mm length
Size: 49, 52, 54
Shimano RS200, 50/34 (compact), 170 mm length
Size: 56, 58, 61
Shimano RS200, 50/34 (compact), 175 mm length
Bottom bracket Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle
Cassette Shimano HG31, CS-HG31, 11-32, 8 speed
Chain Shimano Sora HG71, 8 speed
Max. chainring size 1x: 50T, 2x: 50/34

Wheels
Hub front Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle
Skewer front Bontrager Switch thru axle, removable lever
Hub rear Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear Bontrager Switch thru axle
Rim Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes 14 g stainless steel, black
Tyre Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm
Max tyre size 38mm without mudguards, 35mm with mudguards

Components
Saddle Verse Short, steel rails, 145 mm width
*Seatpost Size: 44, 49
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size: 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar Size: 44
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drops width
Size: 44, 49
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width
Size: 49
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drops width
Size: 52
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drops width
Size: 52
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width
Size: 54, 56
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drops width
Size: 54, 56
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
Size: 58, 61
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 44 cm control width, 48 cm drops width
Size: 58
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Handlebar tape Bontrager Supertack Perf tape
*Stem Size: 44
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size: 61
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake Tektro C550 mechanical disc brake, dual piston, flat mount
Brake rotor Tektro wave, 6-bolt, 160 mm
Rotor size Max brake rotor sizes: 160 mm front and rear
Please contact us for any further product specific specifications for this Domane AL 2 Gen 4 2024.
